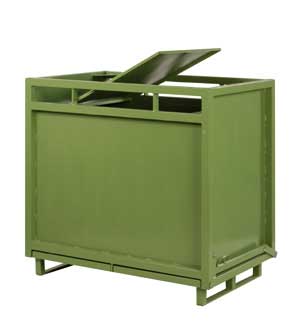

Container with base opening
next next



for light and heavy products of all kinds – apart from liquids



The 7 advantages:



1. Maximum use of volume

2. Minimum need for space, the containers can be stacked

3. Easy, fast, complete emptying (no residues remain in the container)

4. Safe handling (container can not tip)

5. Easy transportation and handling (with a simple fork lifter)

6. The container can be used to ram waste down into the waste container

7. Automatic closing when set down

The containers open at the base and are specially designed for the transportation and storage of solid materials and waste. They can be supplied enamelled, galvanized and with or without rollers. A lifting truck is used for transportation in the latter case.



Lever for opening the base:
the containers can be equipped with a system that allows the base shutter to be opened with a lever as required.

The CD 02 bar serves to operate the lever when the container is at the high position (see sketch). H = A + B + C
Containers with a base opening for light and heavy products. RAL 6011 green or RAL 5015 blue enamelling, special enamelling on request, hot-dip galvanized.
Type

sizes

length-width high

volume

app. liter

loading capacity kg

weigth

app. (kg)
CD-1
1000/800/800
500
1000
120
CD-2
1200/800/1200
800
1000
150
CD-3
1200/1000/1200
1000
1500
170
CD-4
1200/1200/1200
1500
1500
250
CD-5
1200/1200/1600
2000
1800
280

Cover half folding down – extra cost.

CD-1

CD-2

CD-3

CD-4 + 5

Cover half folding down – extra cost.

Wheel-Ø 150 x 50 mm, polyamide – extra cost

CD-1, 2, 3

CD-3, 4
